Features

Back to Top

Common Materials

  • Earth (dry, packed)
  • Earth (loam)
  • Earth (wet, excavated)

Common Applications

  • Road / Bridge Construction
  • Road Maintenance
  • Site Finishing
  • Utility Clean Up

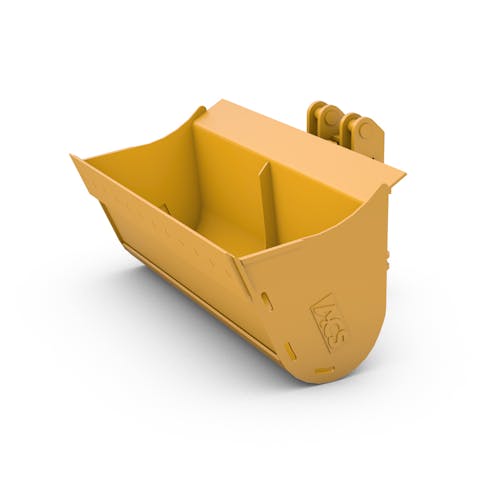

45 Degree Lateral Tilt

45 Degree Lateral Tilt

Allows operator to position bucket without moving the entire excavator. Lateral tilt adjustable up to 45 degrees in both directions.

Bolt-On Edge

Comes installed with beveled, wear-resistant steel edge that takes the brunt of all first-contact impacts. Double-sided for twice extended life; when one side wears down, simply turn it around to expose the fresh edge.

Drainage Perforations

Provide fast escape routes for unwanted liquid in your payload.

High Strength Steel

Heavy wear areas are constructed with premium-grade AR 400 steel for maximum impact and abrasion resistance. AR 400 steel has a minimum BNH (Brinell Hardness Number) of 360 and is valued for its durability and strong resistance to abrasion.

Skid Pads

The underside is clad with welded-on AR 400 steel skid pads. AR 400 steel has a minimum BNH (Brinell Hardness Number) of 360 and is valued for it’s durability and strong resistance to abrasion.

Specifications

Back to Top

Sizes

Bucket Type Width Bucket Capacity Weight
Class 10-15 Pin-On Connect 60 .62 1,818 lbs
Class 10-15 Volvo S1 or S6 60 .62 1,818 lbs
Class 20-25 Pin-On Connect 72 .91 2,297 lbs
Class 20-25 Volvo S1 or S6 72 .91 2,297 lbs

Get a Quote for this Attachment

Attachments available as direct-pin or quick coupler adapted. ACS will respond with pricing and current availability for this attachment.
